Rectangle with thicker line

•

  Carveco Support

  29 October 2021 13:00

  Hi Roni Segoly,

  For the benefit of others, please explain further what you mean by "make it thicker".

  Perhaps you could share screenshots of your model and toolpath settings within Carveco Maker.

  If you're creating a Profiling toolpath to machine around a rectangle vector, please watch the following demonstration video included in our Carveco Fundamentals training course: Profile

  Thanks for your time and consideration.

  0

  Comment actions Permalink
•

  Roni Segoly

  30 October 2021 05:07

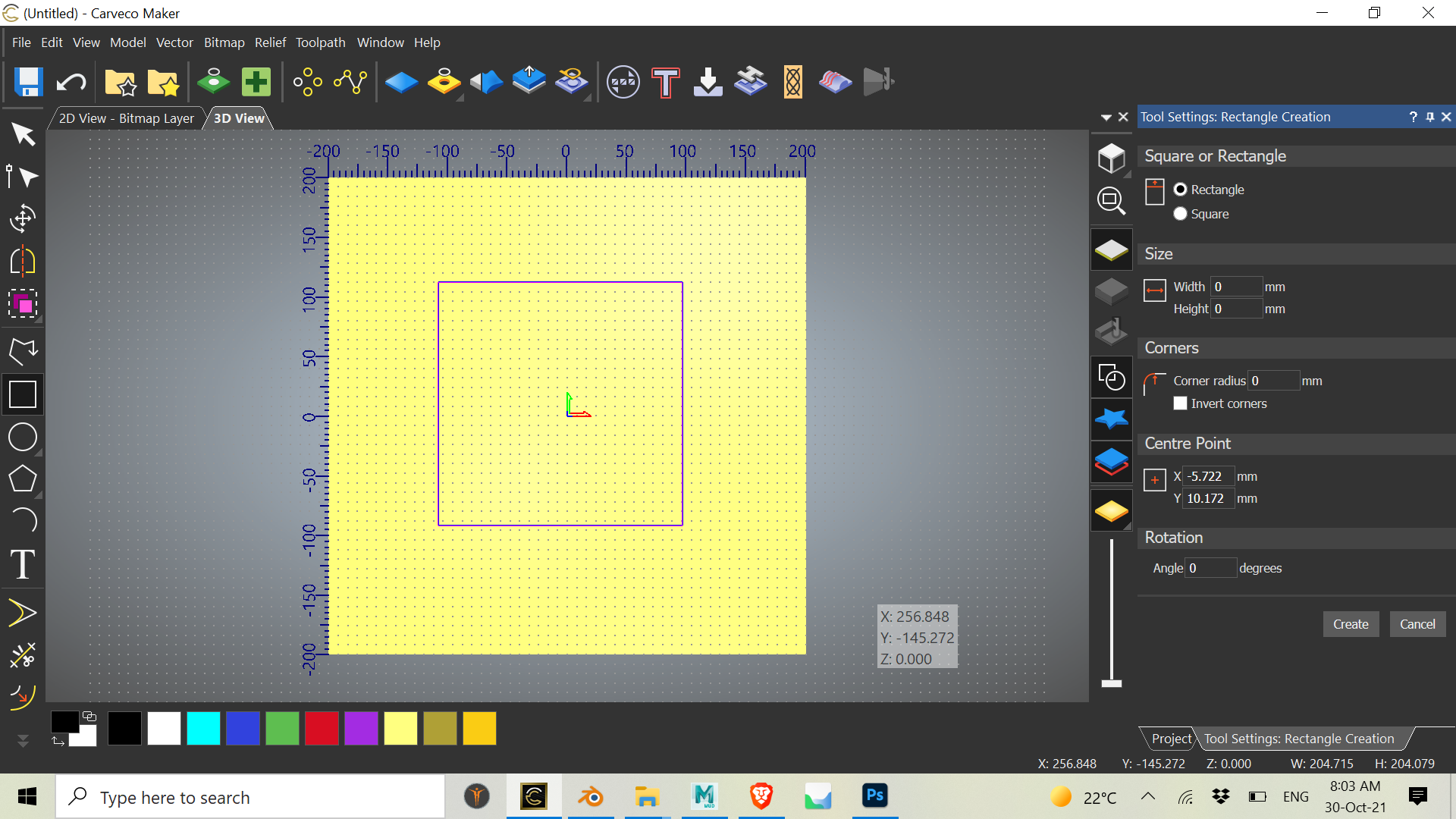

  My question was, when I create a rectangle I can add offset path and then use clearance tool to clear the space between the two vectors, but can I just make the line of the rectangle thicker when creating, so I do need to add another vector as offset?

  0

  Comment actions Permalink
•

  Carveco Support

  01 November 2021 12:48 (Edited 01 November 2021 12:48)

  Hi Roni Segoly,

  Please create an offset from your original rectangle (select the rectangle, then select the Vector > Offset menu option) to create a new rectangle, hold down the Shift key then click to select the original rectangle followed by the offset vector, and then create an Area Clearance toolpath between the two vectors.

  While you can adjust the thickness of vectors shown in the view by selecting the Edit > Options menu option and specifying a Vector Thickness in the Options panel's Drawing Options settings, this is for visualization purposes only.

  Thanks for your time and consideration.

  1
