little help with 3d file

Michael Jones

26 March 2020 00:32

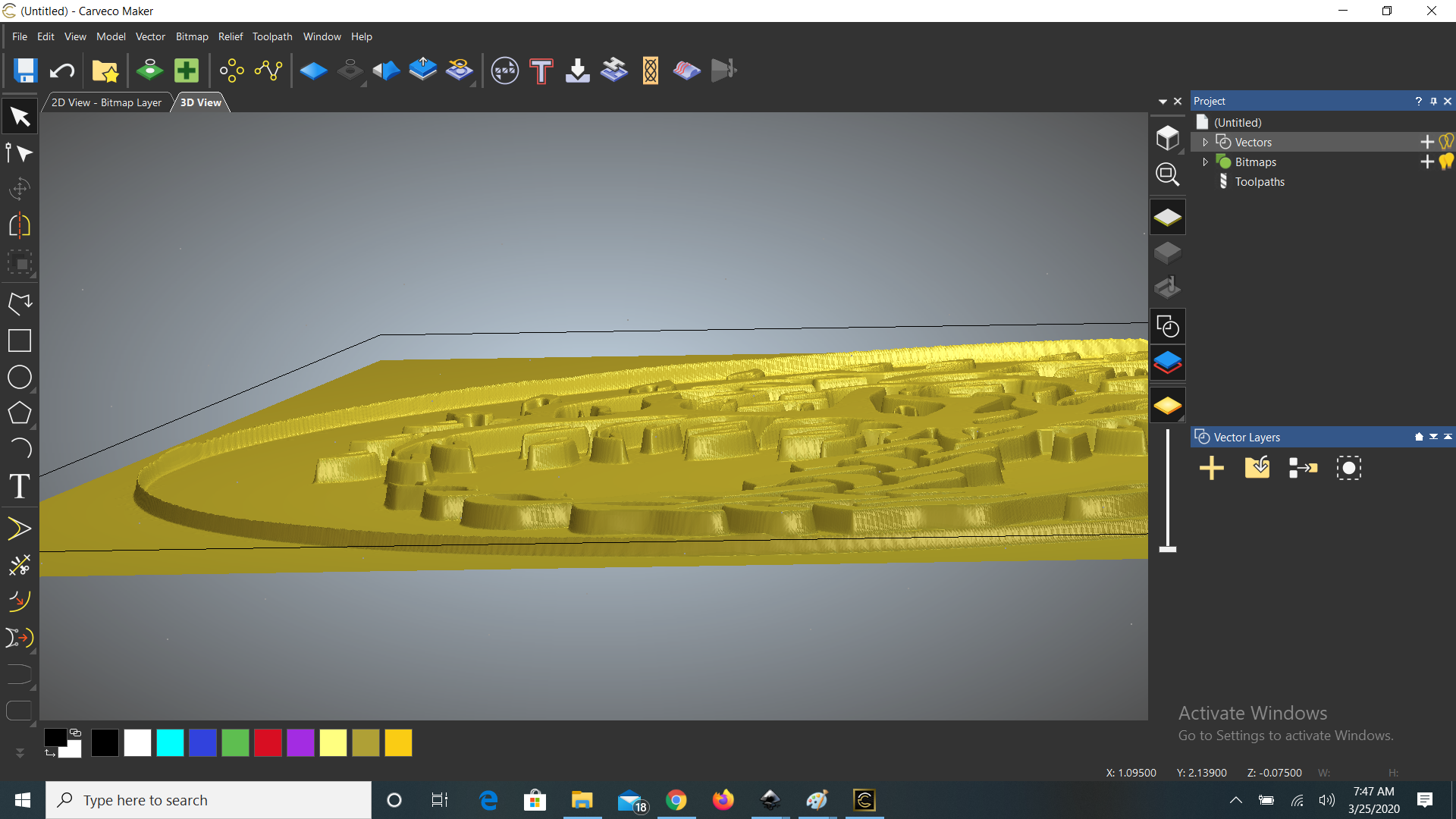

I am trying to relief carve a clipart everything is good except I can not seem to carve out just the cirlce and tree. I only want the circle with the tree and not carve down the stock out side the circle. I have watched the videos but I cant seem to find direction

Comments

1 comment

Carveco Support
26 March 2020 00:44 (Edited 26 March 2020 00:46)

Hi Michael,

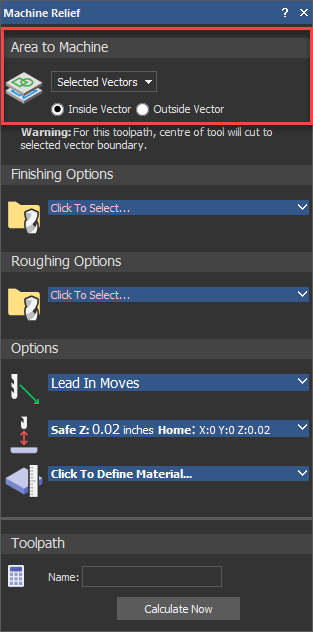

Draw a circle to create a vector boundary around the area you want to machine. With that circle selected, make sure the Selected Vectors and Inside Vector options are selected when you're calculating your Machine Relief toolpath:

0
